Specifications:

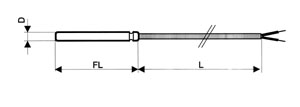

Probe diameter D: 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, other diameters upon request
Cable sleeve:
for probe diameters D 3 mm, 4 mm, 5 mm, 6 mm, 8 mm:
there is a cable sleeve Ø 5 mm x 50 mm in addition to the fitting length
for probe diameters D 6 mm and MB3 or MB4:
there is a cable sleeve Ø 8 mm x 35 mm with taper to
Ø 5 mm x 17 mm in addition to the fitting length
Note:
The temperature of the cable sleeve must not exceed the permitted temperature of the cable.
Accuracy: DIN class B, DIN class A, 1/3 DIN class B, 1/10 DIN class B
Tube material: V4A stainless steel
